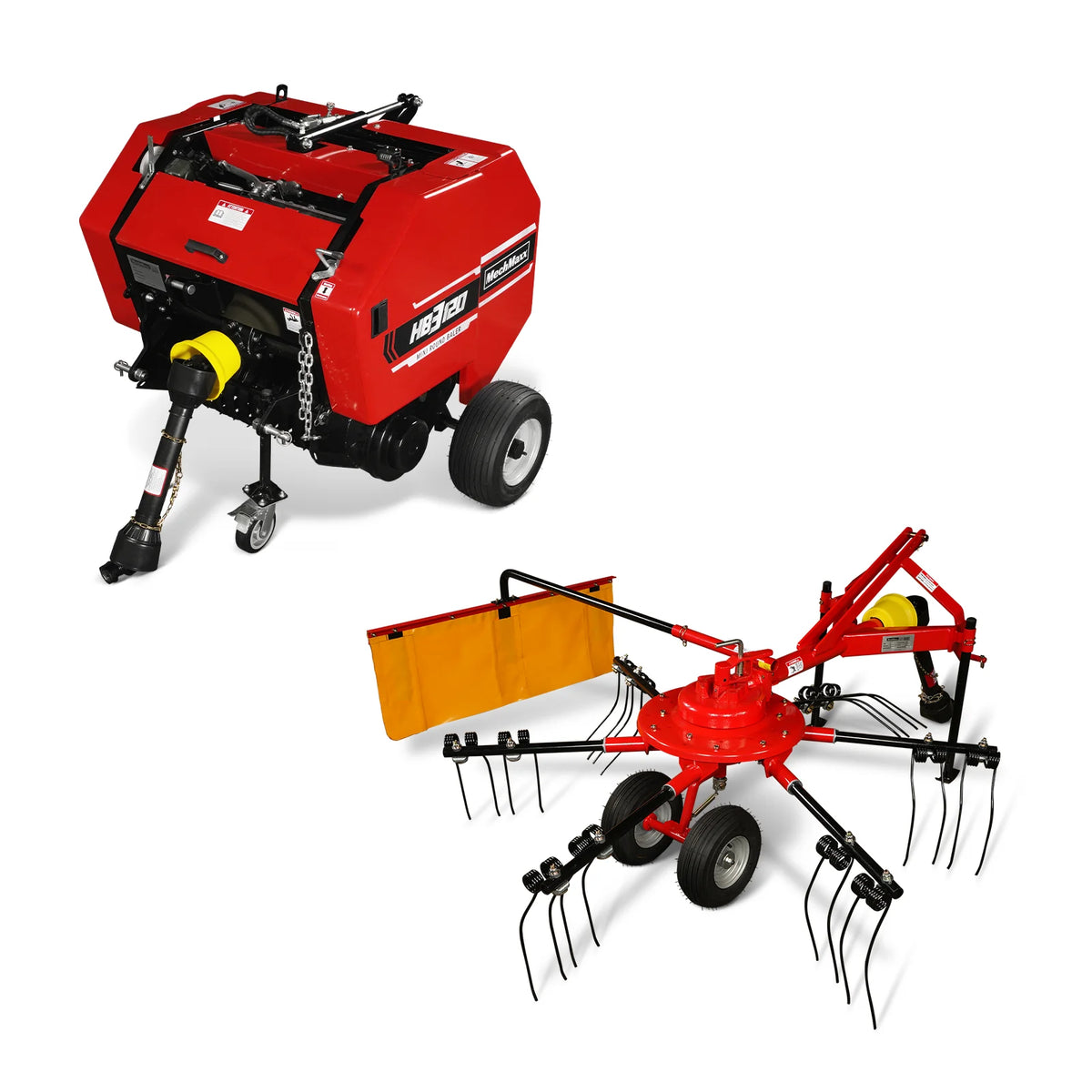

Hay Baler & Hay Rake Tedder Bundle, HB3120, HT100

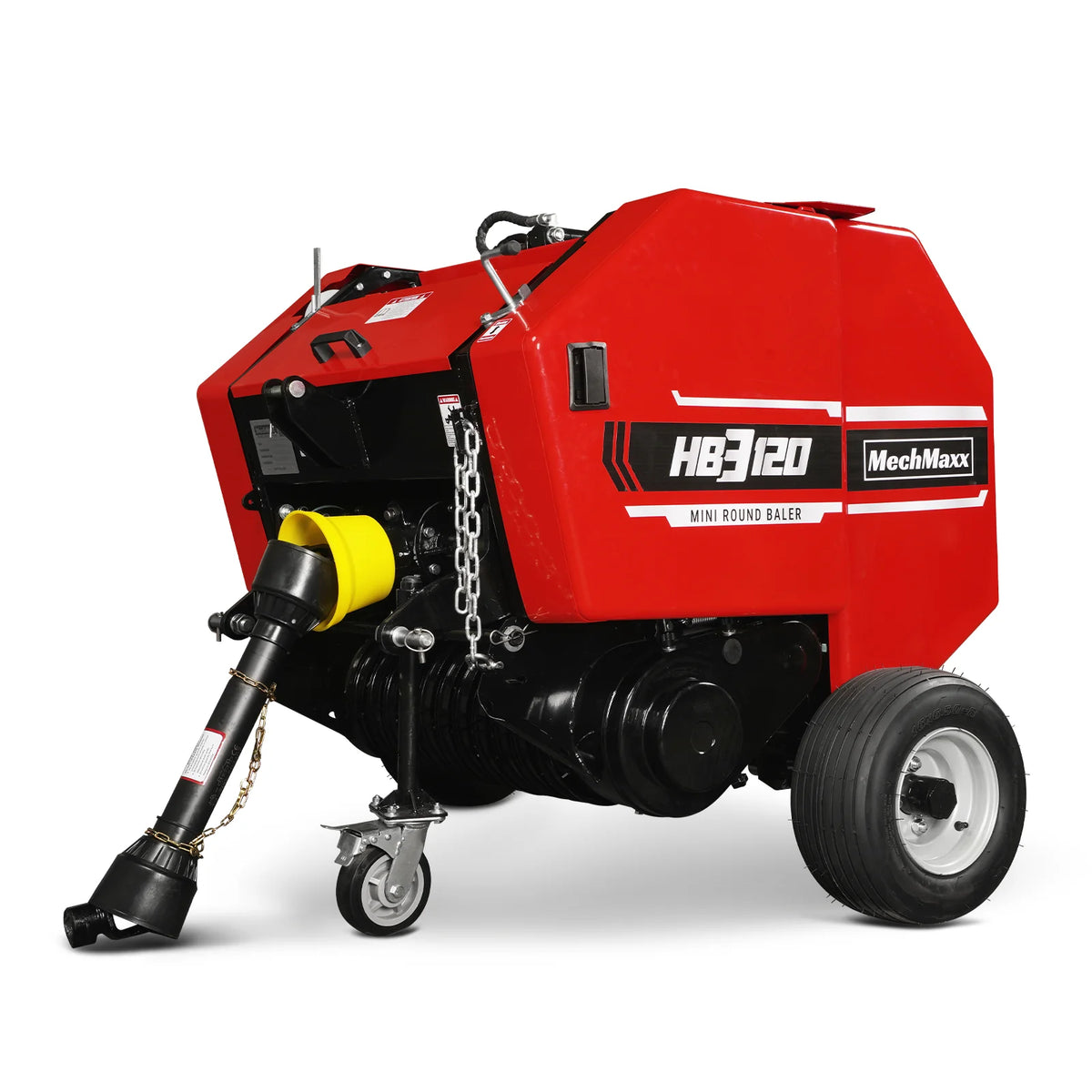

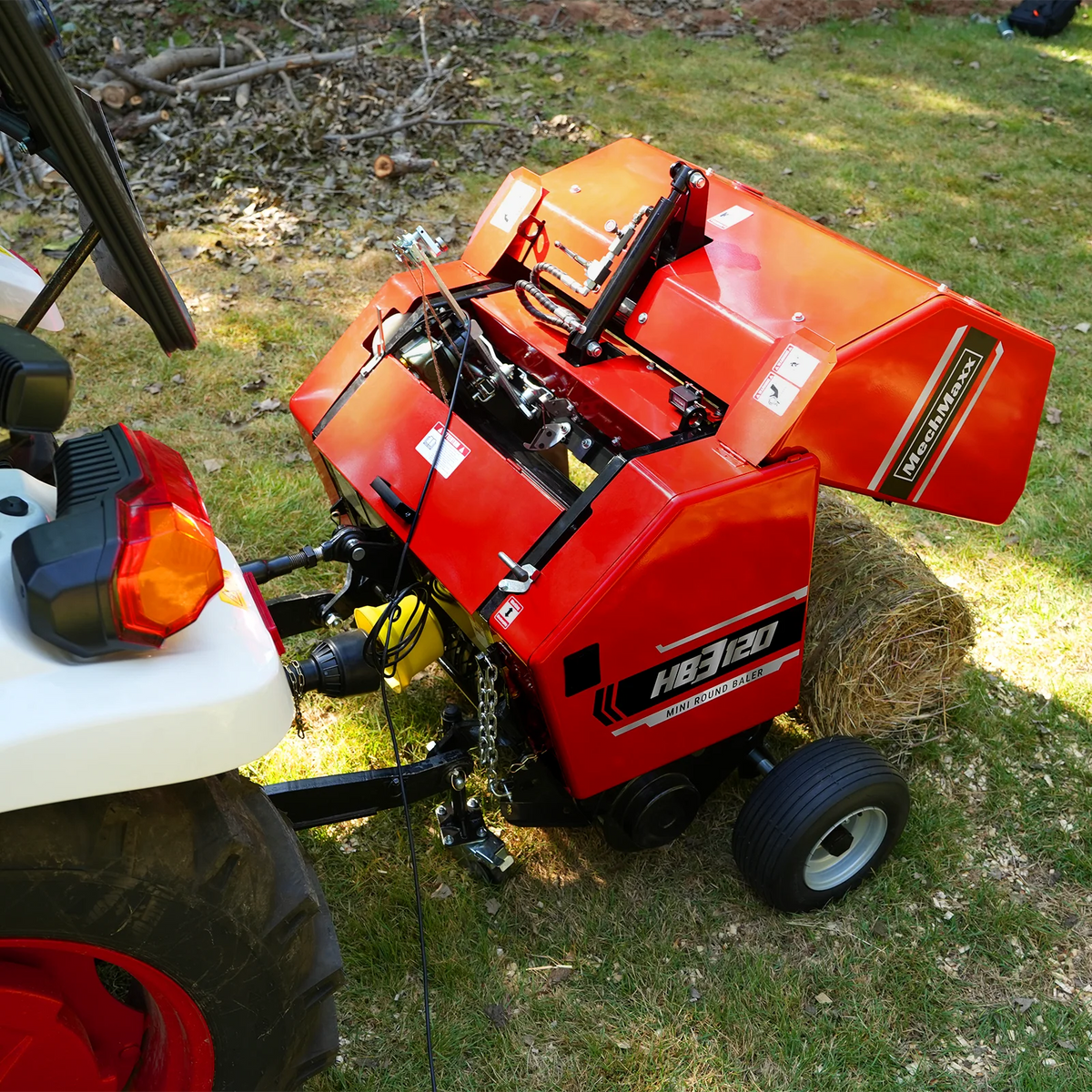

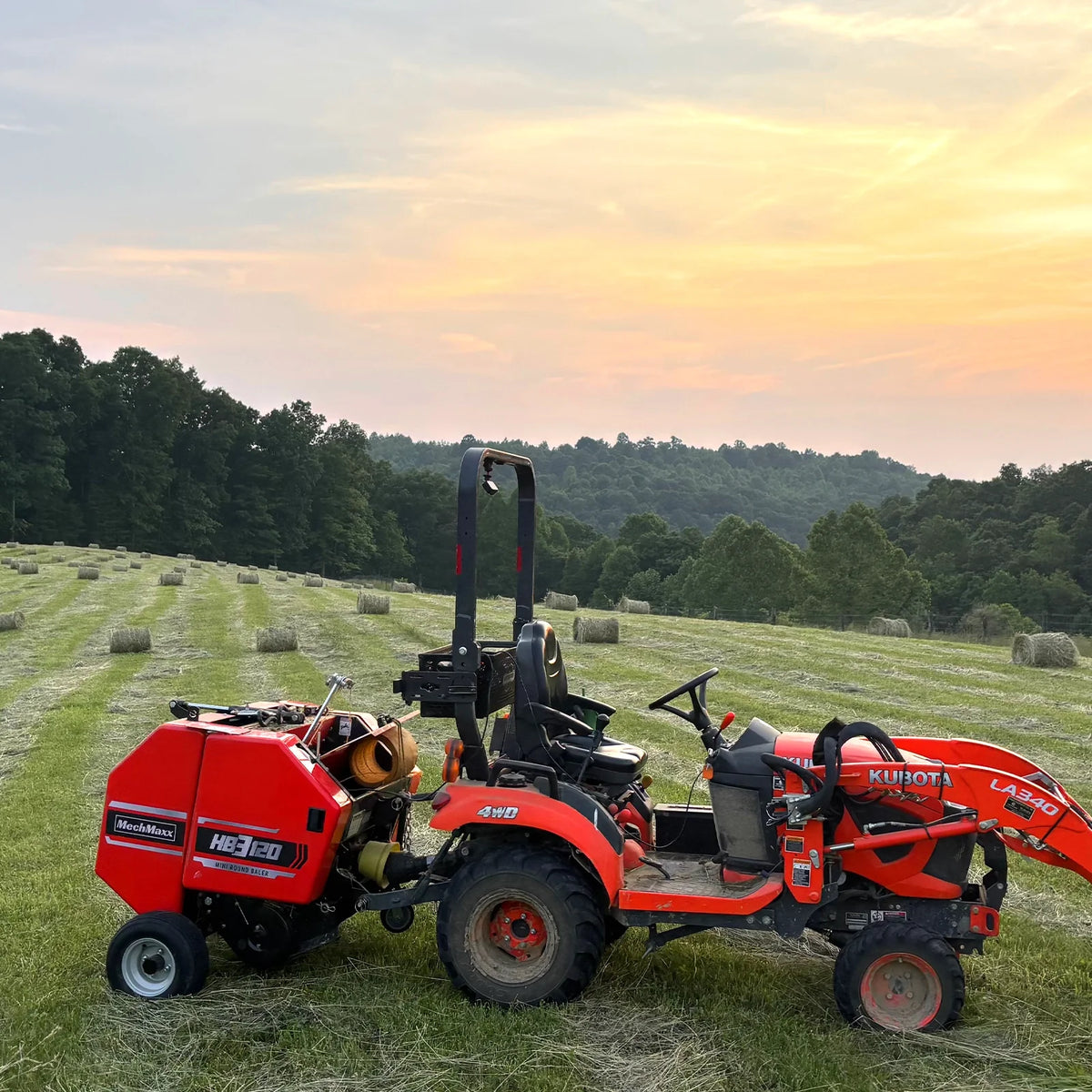

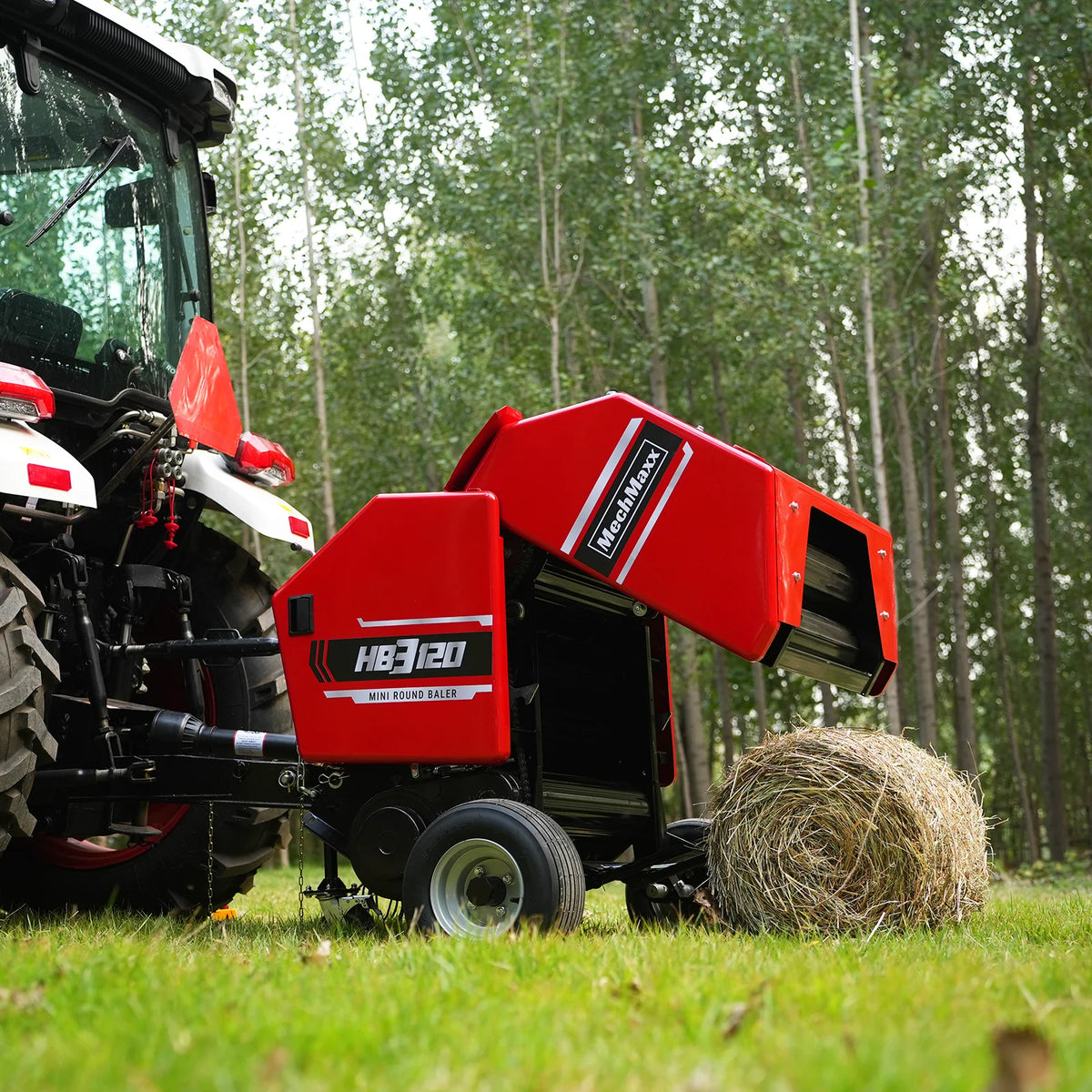

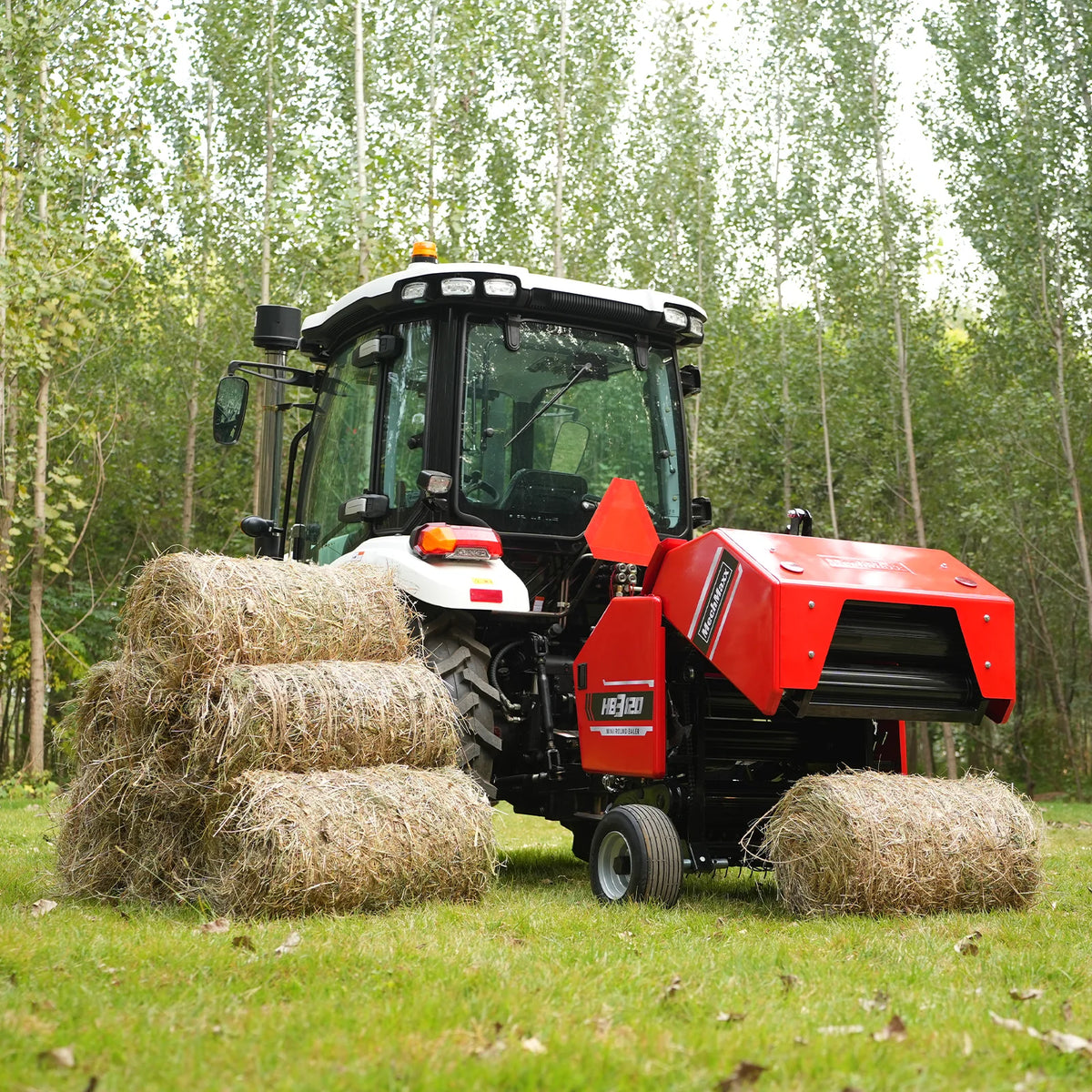

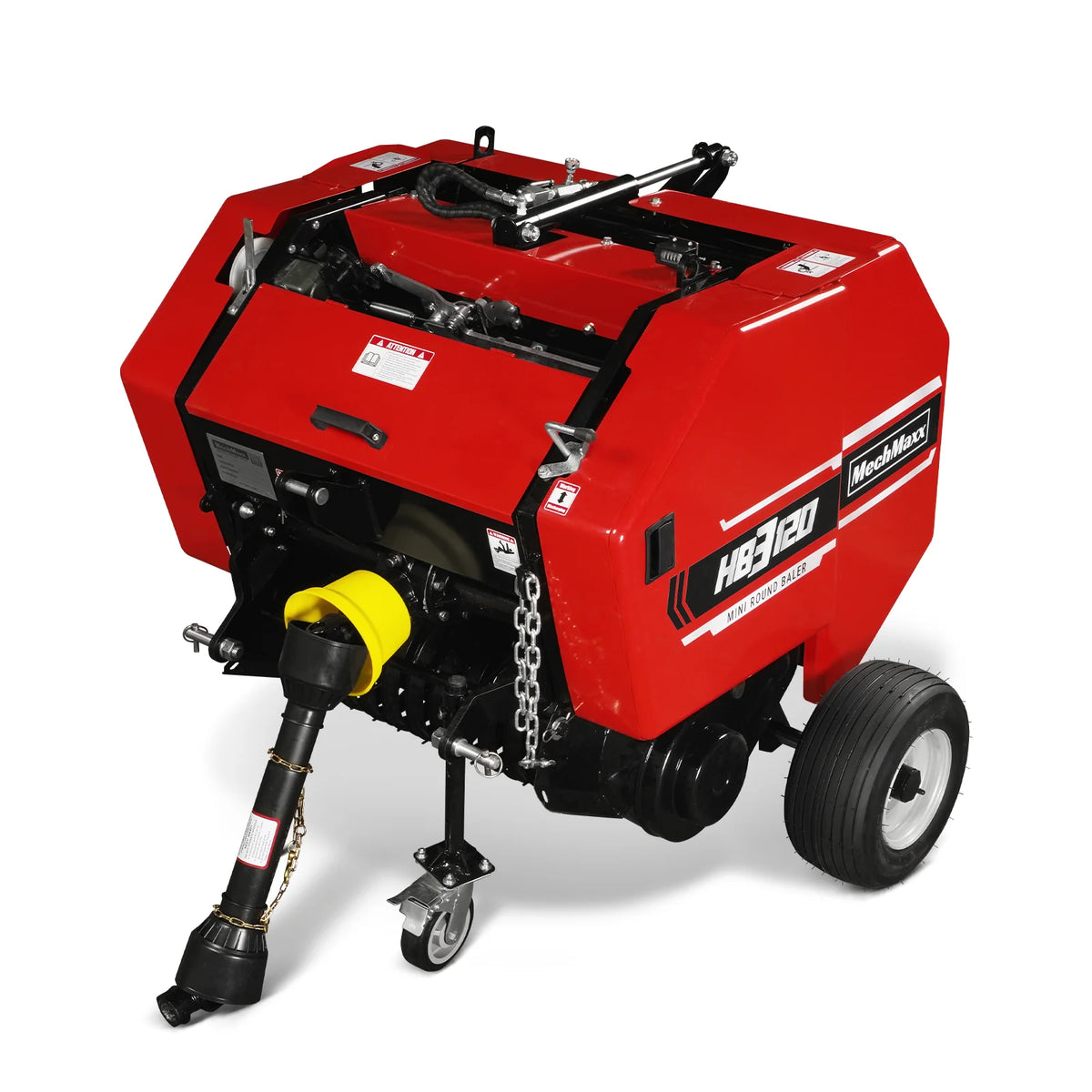

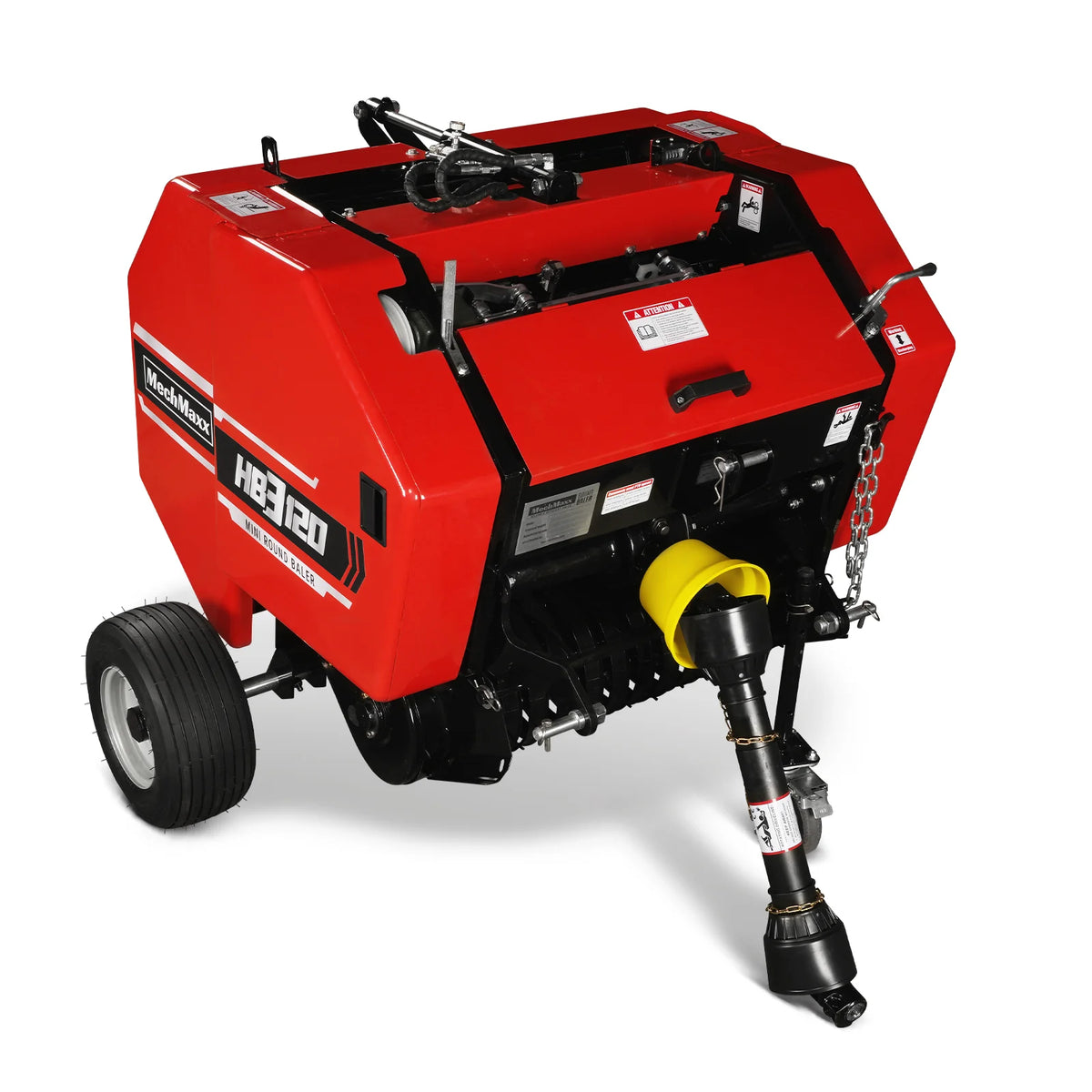

Hay Baler HB3120
| Tractor Power Required | 15-50 Hp |
| Minimum Tractor Weight | 1500 lbs |
| Bale Size （Diameter X Width） | φ20 X 28 in |
| Bale Weight | 30 - 50 lbs |
| Overall (L x W x H) | 45 x 51 x 47 in |
| Pickup Width | 31.5 in |
| Efficiency | 1.24-3.11 mi/h |
| Capacity | 80 - 100 Bales / Hour |
| Bale Wrapping | Twine Wrap |
| Hydraulics | Independent Hydraulic Power Unit, No Need Tractor Hydraulics |
| Electrical | Aviation Plug, Easy To Connect With Tractor |
| Tire Size | 16 x 6.5 in |
| PTO Shaft Speed | 540 rpm |
| Spline End | 1.375in Z6 |
| 3-Point Hitch | CAT 1 |
| Gearbox Oil Type | 80W90 EP Gear Oil |
| Finish | Powder Coating |
| Warranty | 1 Year |
| Shipping Box | 47 x 45 x 47 in |
| Weight (N.W./G.W.) | 970 /992 lbs |
Hay Tedder Combo HT100
| Tractor Power Required | 15-50 hp |
| Minimum Tractor Weight | 1500 lbs |
| Working Width | 100 in |
| Rake Diameter | 79 in |
| Spreading With | 63 in |
| Overall (L x W x H) | 83 x 98 x 37 in |
| Arms No. | 6 |
| Spring Teeth No. | 12 |
| Working Speed | 2.5-5 mi/h |
| Picking Up Objects | Various Types Of Straw, Pasture |
| Tire Size | 13x5.0-6 |
| PTO Shaft Speed | 540 rpm |
| Spline End | 1.375in Z6 |
| 3-Point Hitch | CAT 1 |
| Gearbox Oil Type | 80W90 Gear Oil |
| Finish | Powder Coating |
| Warranty | 1 Year |
| Shipping Box | 57 x 24 x 29 in |
| Weight (N.W./G.W.) | 357/405 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
